DROPARRAY
INSTRUMENTS FOR MULTIPLEX IMUNOASSAYS
DA-Bead 시스템과 플레이트를 사용한 소형화는 샘플 분량과 비드의 소모를 5배 감소시키고
연구비용을 60% 이상까지 줄여줍니다. DropArray 세척방법은 효율적이며 비드의 응집을 제한합니다.
- Features
- Accessories and components
- How DA-Bead Plates Stack up
- Scientific data
Features
01
샘플 절약
02
기존 워크플로우 적용 가능
03
다중 면역분석 연구 비용 감소
04
정확한 결과를 위한 탁월한 비드 보전성
Accessories and components
| 96-well DA-Bead Plate | 384-well DA-Bead Plate | DropArray™ Bead Reading Fluid |
|---|---|---|
| 96-CC-BD-05 | 384-CC-BD-05 | BD-RD-01-01 |
How DA-Bead Plates Stack up
| 샘플 분량 | 비드 분량 | 세척의 난이도 | 키트당 웰 수 | 96개 웰의 1회 분석을 위한 총 시약 비용 |
|
|---|---|---|---|---|---|
| DA Plates (96well DropArray-Bead plates) | 10μl* | 5μl* | MTP와 유사 | 480 | $300 |
| MTP (96well microtiter plate) | 50μl* | 25μl* | 해당 없음 | 96 | $1,500 |
Scientific data
DA-BEAD PLATE VS TRADITIONAL PLATE TECHNOLOGY

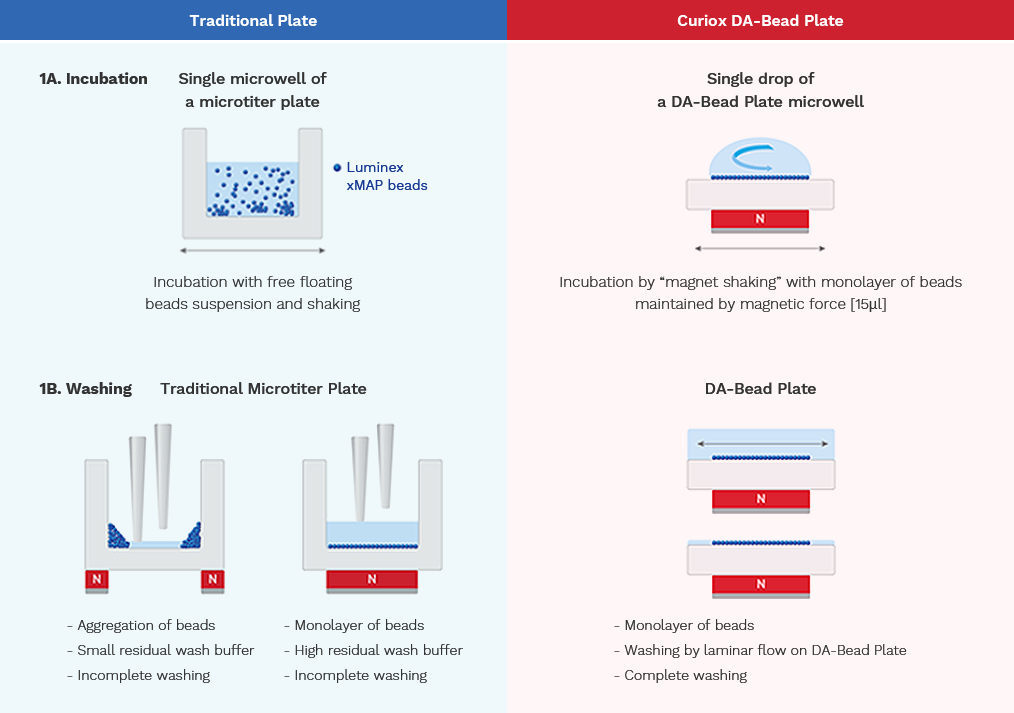

(A) Incubation method principle in traditional plate (left) and DA-Bead Plate (right). Beads are freely floating with shaking in traditional well at 75µl volume vs. beads are fixed in a 15 µl drop in DA-Bead Plate by a magnet below the well and shaken.
(B) Washing method principle in traditional plate (left) and DA-Bead Plate (right). Magnet array with traditional plate either super packs beads at the side of a traditional well or keep beads as a monolayer resulting in aspiration of beads and/or incomplete washing with the nozzle/pipet based dispenser. Conversely, DA-Bead Plate magnet configuration maintains beads as a monolayer (right) resulting in complete washing with gentle laminar flow and minimal residual wash buffer leftover.
